SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

  • 1
  • 2
  • 3

Brand Name : QiJie

Model Number : SGS

Certification : Certification ISO

Place of Origin : HeBei,China

MOQ : 10 rolls

Price : discuss

Payment Terms : TT/LC

Supply Ability : 50000 rolls

Delivery Time : 15-30 days

Packaging Details : 430 70micron stainless steel wire mesh 1. paper tube/Waterproof paper inside , then wooden box outside 2. Customized package is also avaliable

Material : Stainless Steel Wire, Stainless Steel Wire

Type : Weave Wire Mesh, Wire Cloth,Weave Wire Mesh

Technique : Plain Woven

Size : 1.5*30m

Application : Screen, Filters window

Weave Style : Plain Weave

Mesh : 1-100mesh

Wire Diameter : 0.15-4.0mm

Email : devin@industrialmetalmesh.com

whatsapp : +8615369013183

Contact Now

SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

we manufactures custom high-performance filters and filtration products for all industries such as filter wire mesh, wire cloth filters, and material-specific filters like stainless steel mesh filters. Using our high-quality wire cloth, welded wire mesh, annealed and diffusion bonded wire mesh; we offer stamping, fabricating and finishing services to manufacture production-ready filters for your applications.

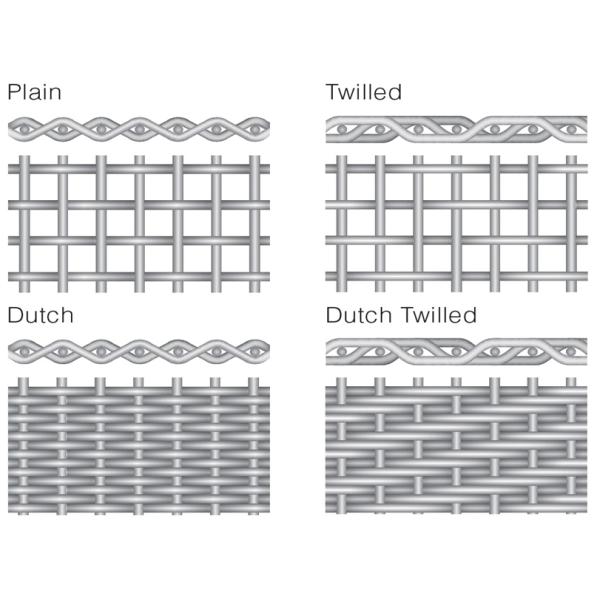

SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

Plain Weave Stainless Steel Wire Mesh Cloth for Filter - Most Common Type

Applications:

  • Used for filter or sieve in mining, chemical fiber, pharmaceutical industries, such as mud mesh, pickling mesh;

  • Made into window screen, fruit basket, infill panel, etc

SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

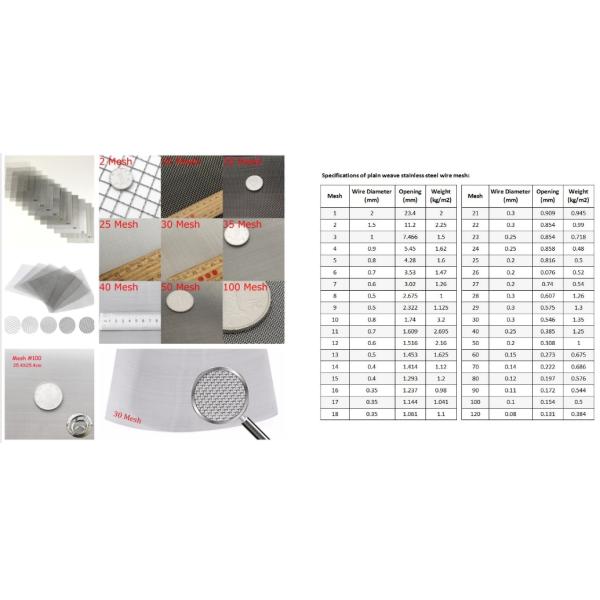

Specifications of plain weave stainless steel wire mesh:

  • Materials: stainless steel 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.
  • Mesh patterns: square, rectangle.
  • Surface treatment: pickling and passivation, polishing.
  • Packing:
    • Rolls wrapped with craft paper and then put into carton or on pallet;
    • Sheets in wooden boxes or on pallets.
  • SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

Twill Weave Stainless Steel Wire Mesh for Screen, Mud or Pickling Mesh


Applications:

SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

Specifications of twill weave stainless steel wire mesh:

  • Sieve or filter liquid, gas, solid;

  • Used in oil, chemical fiber, plating industries or medical equipment, food processing;

  • Made into infill panel, vegetable basket, decoration.

Material 304,304L,310,316,316L,super duplex stainless steel, duplex stainless steel or customized. Items Mesh Wire Diameter (mm) Mesh Aperture (mm) Material (AISI)
SSTW01 250 × 250 0.04 0.063 SUS316
Width 0.5-1.5 m SSTW02 300 × 300 0.04 0.044
SSTW03 325 × 325 0.035 0.043 SUS316L
Roll length 30 m a roll or customized. SSTW04 350 × 350 0.03 0.042
SSTW05 400 × 400 0.03 0.033
Surface treatment pickling and passivation, polishing. SSTW06 450 × 450 0.028 0.028
SSTW07 500 × 500 0.025 0.026

  • Stainless Steel Dutch Wire Mesh Used in Fuel Filter, Aerospace, Rubber Industry

    SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

Specifications of Stainless Steel Plain Dutch Wire Mesh Specifications of Stainless Steel Twill Dutch Wire Mesh
Mesh/Inch (warp×weft) Wire Dia. warp×weft(mm) Normal size (μm) Effective area% Weight kg/sq.m Thickness (mm) Weft × Warp (inch) Aperture Size (μm) Available Area (%) Thickness (mm)
7×44 0.71×0.63 319 14.2 5.55 1.97 20 × 270 119 17.6 0.65
8×45 0.8×0.6 310 15.5 5.7 2 20 × 200 118 12.1 0.915
8×60 0.63×0.45 296 20.3 4.16 1.53 24 × 300 110 19.6 0.64
8×85 0.45×0.315 275 27.3 2.73 1.08 20 × 150 101 7.5 1.16
10×90 0.45×0.28 249 29.2 2.57 1.01 30 × 340 89 17.9 0.6
10×76 0.5×0.355 248 21.8 3.24 1.21 30 × 270 77 11.2 0.68
12×86 0.45×0.315 211 20.9 2.93 1.08 40 × 540 70 23.5 0.38
12×64 0.56×0.40 211 16 3.89 1.36 40 × 430 63 15.4 0.43
12×76 0.45×0.355 192 15.9 3.26 1.16 50 × 600 51 17.2 0.305
14×100 0.40×0.28 182 20.3 2.62 0.96 50 × 500 47 12 0.364
14×110 0.4×0.25 177 22.2 2.28 0.855 65 × 600 36 12 0.32
14×76 0.45×0.355 173 14.3 3.33 1.16 70 × 600 31 10.1 0.32
16×100 0.40×0.28 160 17.7 2.7 0.96 78 × 760 31 13.5 0.254
17×120 0.355×0.224 155 22.4 2.19 0.803 78 × 680 29 10.3 0.272
16×120 0.28×0.224 145 19.2 1.97 0.728 80 × 680 28 9.8 0.272
20×140 0.315×0.20 133 21.5 1.97 0.715 90 × 850 26 12.7 0.226
20×170 0.25×0.16 130 28.9 1.56 0.57 90 × 760 24 9.6 0.242
20×110 0.355×0.25 126 15.3 2.47 0.855 100 × 850 22 10 0.226
22×120 0.315×0.224 115 15.5 2.2 0.763 130 × 1500 21 18.6 0.135
25×140 0.28×0.20 100 15.2 1.96 0.68 100 × 760 20 7.4 0.242
24×110 0.355×0.25 97 11.3 2.6 0.855 130 × 1200 18 12 0.161
28×150 0.28×0.18 92 15.9 1.87 0.64 130 × 1100 17 9.4 0.171
30×150 0.25×0.18 82 13.5 1.79 0.61 150 × 1400 15 11.4 0.143
30×140 0.315×0.20 77 11.4 2.21 0.715 160 × 1500 15 12.4 0.135
35×190 0.224×0.14 74 16.8 1.47 0.504 165 × 1500 14 11.4 0.135
35×170 0.224×0.16 69 12.8 1.62 0.544 174 × 1700 13 12.9 0.127
40×200 0.18×0.135 63 15.4 1.24 0.43 165 × 1400 13 8.8 0.143
50×250 0.14×0.11 50 15.2 1 0.36 174 × 1400 11 7.4 0.143
60×500 0.14×0.055 51 34.1 0.7 0.252 203 × 1600 10 9.3 0.114
50×270 0.14×0.10 50 15.2 0.98 0.34
65×390 0.125×0.071 42 19.1 0.78 0.267
60×300 0.14×0.09 41 14.1 0.96 0.32
80×700 0.125×0.04 40 38.1 0.6 0.205
60×270 0.14×0.10 39 11.2 1.03 0.34
77×560 0.14×0.05 38 27.5 0.74 0.24
70×390 0.112×0.071 37 16.3 0.74 0.254
65×750 0.10×0.036 36 37.1 0.43 0.172
70×340 0.125×0.08 35 13.2 0.86 0.285
80×430 0.125×0.063 32 16.6 0.77 0.251
118×750 0.063×0.036 23 21.5 0.38 0.135
